K67減速機電機功率：

K67Y0.18KW,K67Y0.25KW,K67Y0.37KW,K67Y0.55KW,K67Y0.75KW,K67Y1.1KW,K67Y1.5KW,K67Y2.2KW,K67Y3KW,K67Y4KW,K67Y5.5KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

K67錐齒輪減速機減速比：

144.79比減速器,123.54比減速器,108.03比減速器,102.62比減速器,90.04比減速器,76.37比減速器,68.95比減速器,60.66比減速器,57.28比減速器,48.77比減速器,44.32比減速器,38.39比減速器,35.62比減速器,30.22比減速器,27.28比減速器,24比減速器,22.66比減速器,19.3比減速器,17.54比減速器,15.19比減速器,13.22比減速器,12.48比減速器,10.63比減速器,9.66比減速器,8.37比減速器,7.28比減速器,5.2比減速器

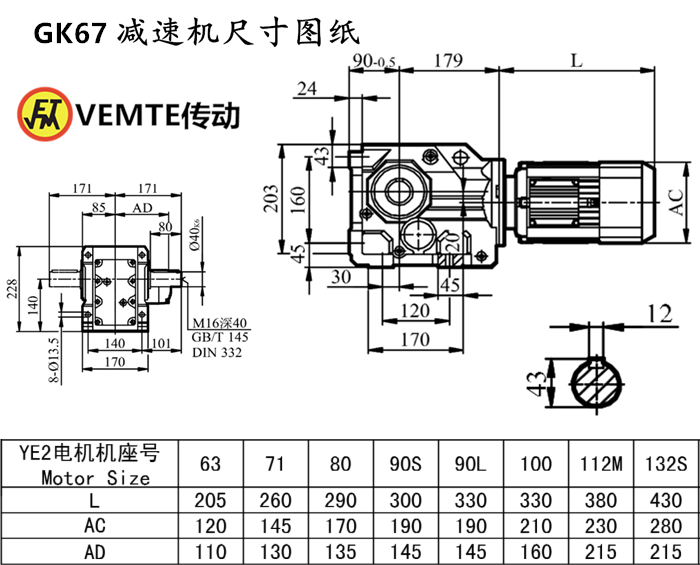

K67減速機安裝尺寸：輸出軸+鍵Φ43（可定做），高228*寬256（帶輸出軸）*長269

K67減速機輸出轉數：

9.7轉減速機,11轉減速機,13轉減速機,14轉減速機,16轉減速機,18轉減速機,20轉減速機,23轉減速機,24轉減速機,29轉減速機,32轉減速機,36轉減速機,39轉減速機,46轉減速機,51轉減速機,58轉減速機,62轉減速機,73轉減速機,80轉減速機,92轉減速機,106轉減速機,112轉減速機,132轉減速機,145轉減速機,167轉減速機,192轉減速機,269轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

K67傘齒輪減速機輸出扭矩：

減速箱820N.m,減速箱780N.m,減速箱760N.m,減速箱740N.m,減速箱700N.m,減速箱670N.m,減速箱530N.m,減速箱500N.m,減速箱480N.m,減速箱440N.m,減速箱420N.m,減速箱350N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

K67減速機電機型號：K系列減速機

K67DRE100M4,K67DRE112M4,K67DRE132M4,K67DRE63M4,K67DRE71M4,K67DRE80M4,K67DRE90M4,K67DRS100M4,K67DRS112M4,K67DRS132M4,K67DRS63M4,K67DRS71M4,K67DRS80M4,K67DRS90M4,K67DT100M4,K67DT112M4,K67DT132M4,K67DT63M4,K67DT71M4,K67DT80M4,K67DT90M4,K67DV100M4,K67DV112M4,K67DV132M4,K67DV63M4,K67DV71M4,K67DV80M4,K67DV90M4,K67Y100M4,K67Y112M4,K67Y132M4,K67Y63M4,K67Y71M4,K67Y80M4,K67Y90M4,K67DRE100S4,K67DRE112S4,K67DRE132S4,K67DRE63S4,K67DRE71S4,K67DRE80S4,K67DRE90S4,K67DRS100S4,K67DRS112S4,K67DRS132S4,K67DRS63S4,K67DRS71S4,K67DRS80S4,K67DRS90S4,K67DT100S4,K67DT112S4,K67DT132S4,K67DT63S4,K67DT71S4,K67DT80S4,K67DT90S4,K67DV100S4,K67DV112S4,K67DV132S4,K67DV63S4,K67DV71S4,K67DV80S4,K67DV90S4,K67Y100S4,K67Y112S4,K67Y132S4,K67Y63S4,K67Y71S4,K67Y80S4,K67Y90S4,K67DRE100L4,K67DRE112L4,K67DRE132L4,K67DRE63L4,K67DRE71L4,K67DRE80L4,K67DRE90L4,K67DRS100L4,K67DRS112L4,K67DRS132L4,K67DRS63L4,K67DRS71L4,K67DRS80L4,K67DRS90L4,K67DT100L4,K67DT112L4,K67DT132L4,K67DT63L4,K67DT71L4,K67DT80L4,K67DT90L4,K67DV100L4,K67DV112L4,K67DV132L4,K67DV63L4,K67DV71L4,K67DV80L4,K67DV90L4,K67Y100L4,K67Y112L4,K67Y132L4,K67Y63L4,K67Y71L4,K67Y80L4,K67Y90L4

K67減速機配各種電機的實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

直角減速電機K67生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-kxiliejiansuji-cn.html

推薦類似型號：減速機KF67
