K57減速機電機功率：

K57Y0.12KW,K57Y0.18KW,K57Y0.25KW,K57Y0.37KW,K57Y0.55KW,K57Y0.75KW,K57Y1.1KW,K57Y1.5KW,K57Y2.2KW,K57Y3KW,K57Y4KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

K57錐齒輪減速機減速比：

145.14比減速器,123.85比減速器,108.29比減速器,102.88比減速器,90.26比減速器,76.56比減速器,69.12比減速器,60.81比減速器,57.42比減速器,48.89比減速器,44.43比減速器,38.49比減速器,35.70比減速器,30.28比減速器,27.34比減速器,24.05比減速器,22.71比減速器,19.34比減速器,17.57比減速器,15.22比減速器,13.25比減速器,11.92比減速器,11.26比減速器,9.59比減速器,8.71比減速器,7.55比減速器,6.57比減速器,4.69比減速器

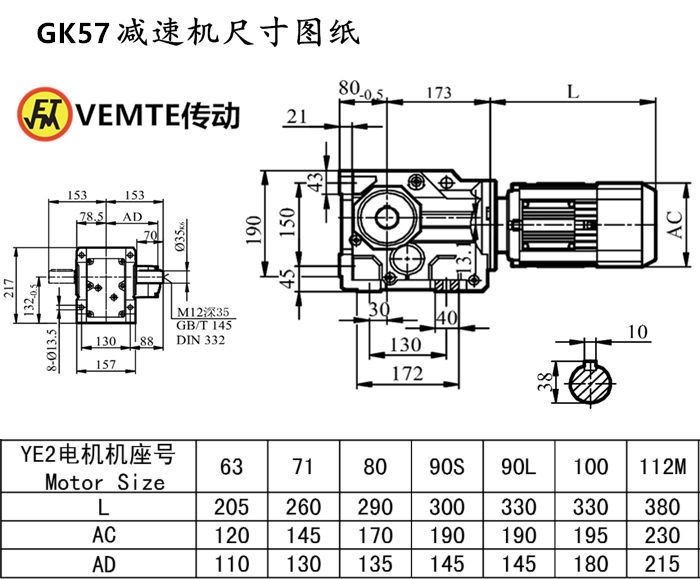

K57減速機安裝尺寸：輸出軸+鍵Φ38（可定做），高217*寬231.5（帶輸出軸）*長253

K57傘齒輪減速機輸出轉數：

9.6轉減速機,11轉減速機,13轉減速機,14轉減速機,16轉減速機,18轉減速機,20轉減速機,23轉減速機,24轉減速機,29轉減速機,32轉減速機,36轉減速機,39轉減速機,46轉減速機,51轉減速機,58轉減速機,62轉減速機,72轉減速機,80轉減速機,92轉減速機,106轉減速機,117轉減速機,124轉減速機,146轉減速機,161轉減速機,185轉減速機,213轉減速機,299轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

K57減速機輸出扭矩：直角減速機

減速箱7630N.m,減速箱7300N.m,減速箱6930N.m,減速箱3480N.m,減速箱6280N.m,減速箱5910N.m,減速箱5740N.m,減速箱5430N.m,減速箱5190N.m,減速箱5150N.m,減速箱4990N.m,減速箱4650N.m,減速箱4520N.m,減速箱4360N.m,減速箱4180N.m,減速箱3800N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

K系列減速機K57減速機電機型號：K57DRE100M4,K57DRE112M4,K57DRE63M4,K57DRE71M4,K57DRE80M4,K57DRE90M4,K57DRS100M4,K57DRS112M4,K57DRS63M4,K57DRS71M4,K57DRS80M4,K57DRS90M4,K57DT100M4,K57DT112M4,K57DT63M4,K57DT71M4,K57DT80M4,K57DT90M4,K57DV100M4,K57DV112M4,K57DV63M4,K57DV71M4,K57DV80M4,K57DV90M4,K57Y100M4,K57Y112M4,K57Y63M4,K57Y71M4,K57Y80M4,K57Y90M4,K57DRE100L4,K57DRE112L4,K57DRE63L4,K57DRE71L4,K57DRE80L4,K57DRE90L4,K57DRS100L4,K57DRS112L4,K57DRS63L4,K57DRS71L4,K57DRS80L4,K57DRS90L4,K57DT100L4,K57DT112L4,K57DT63L4,K57DT71L4,K57DT80L4,K57DT90L4,K57DV100L4,K57DV112L4,K57DV63L4,K57DV71L4,K57DV80L4,K57DV90L4,K57Y100L4,K57Y112L4,K57Y63L4,K57Y71L4,K57Y80L4,K57Y90L4,K57DRE100S4,K57DRE112S4,K57DRE63S4,K57DRE71S4,K57DRE80S4,K57DRE90S4,K57DRS100S4,K57DRS112S4,K57DRS63S4,K57DRS71S4,K57DRS80S4,K57DRS90S4,K57DT100S4,K57DT112S4,K57DT63S4,K57DT71S4,K57DT80S4,K57DT90S4,K57DV100S4,K57DV112S4,K57DV63S4,K57DV71S4,K57DV80S4,K57DV90S4,K57Y100S4,K57Y112S4,K57Y63S4,K57Y71S4,K57Y80S4,K57Y90S4

K57減速機配各種電機的實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

K57減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-kxiliejiansuji-cn.html

推薦類似型號：減速機KF57
