SAF77減速機詳細信息
SAF77減速機
SAF77減速機電機功率：自鎖減速器
SAF77Y0.12KW,SAF77Y0.18KW,SAF77Y0.25KW,SAF77Y0.37KW,SAF77Y0.55KW,SAF77Y0.75KW,SAF77Y1.1KW,SAF77Y1.5KW,SAF77Y2.2KW,SAF77Y3KW,SAF77Y4KW,SAF77Y5.5KW,SAF77Y7.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

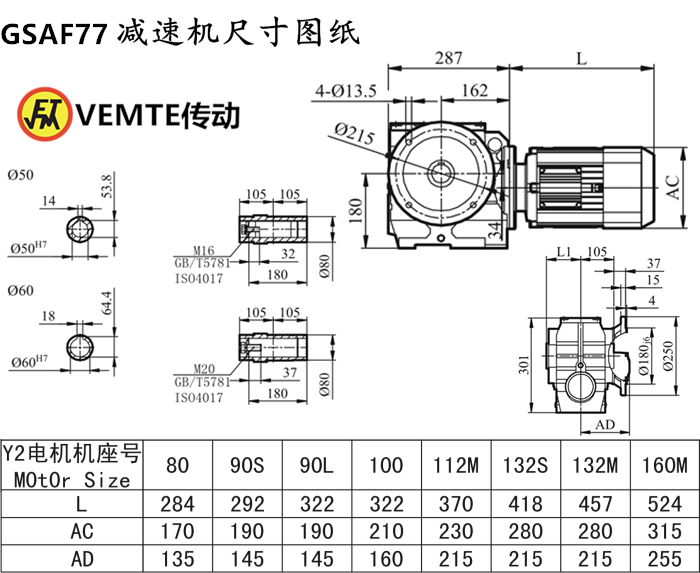

SAF77減速機安裝尺寸：輸出孔+鍵Φ64.4（可定做），高301*寬251（帶輸出法蘭）*長287
SAF77蝸輪蝸桿減速機減速比：
減速箱1：256.47,減速箱1:225.26,減速箱1:214,減速箱1:189.09,減速箱1:161.6,減速箱1:148.15,減速箱1:130,減速箱1:123.3,減速箱1:107.83,減速箱1:97.14,減速箱1:85.22,減速箱1:75.2,減速箱1:75.09,減速箱1:71.33,減速箱1:66.67,減速箱1:63.03,減速箱1:56.92,減速箱1:53.87,減速箱1:49.38,減速箱1:43.33,減速箱1:41.07,減速箱1:35.94,減速箱1:32.38,減速箱1:28.41,減速箱1:25.07,減速箱1:22.89,減速箱1:22.22,減速箱1:20.99,減速箱1:18.97,減速箱1:18.42,減速箱1:17.45,減速箱1:15.28,減速箱1:13.76,減速箱1:12.07,減速箱1:10.65,減速箱1:9.44,減速箱1:8.06
SAF77減速機輸出轉數：
5.50rpm/min減速器,6.2rpm/min減速器,6.5rpm/min減速器,7.4rpm/min減速器,8.7rpm/min減速器,9.4rpm/min減速器,11rpm/min減速器,13rpm/min減速器,14rpm/min減速器,16rpm/min減速器,19rpm/min減速器,20rpm/min減速器,21rpm/min減速器,22rpm/min減速器,25rpm/min減速器,26rpm/min減速器,28rpm/min減速器,32rpm/min減速器,34rpm/min減速器,39rpm/min減速器,43rpm/min減速器,49rpm/min減速器,56rpm/min減速器,61rpm/min減速器,63rpm/min減速器,67rpm/min減速器,74rpm/min減速器,76rpm/min減速器,80rpm/min減速器,92rpm/min減速器,102rpm/min減速器,116rpm/min減速器,131rpm/min減速器,148rpm/min減速器,174rpm/min減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）
SAF77渦輪減速電機輸出扭矩：
680N.m減速機,705N.m減速機,710N.m減速機,720N.m減速機,725N.m減速機,930N.m減速機,980N.m減速機,990N.m減速機,1020N.m減速機,1040N.m減速機,1050N.m減速機,1070N.m減速機,1090N.m減速機,1100N.m減速機,1140N.m減速機,1170N.m減速機,1200N.m減速機,1210N.m減速機,1240N.m減速機,1260N.m減速機,1270N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）
SAF77減速機電機型號：SAF77DV71S4,SAF77DV80S4,SAF77DV90S4,SAF77DV100S4,SAF77DV112S4,SAF77DV132S4,SAF77DT71S4,SAF77DT80S4,SAF77DT90S4,SAF77DT100S4,SAF77DT112S4,SAF77DT132S4,SAF77DRE71S4,SAF77DRE80S4,SAF77DRE90S4,SAF77DRE100S4,SAF77DRE112S4,SAF77DRE132S4,SAF77DRS71S4,SAF77DRS80S4,SAF77DRS90S4,SAF77DRS100S4,SAF77DRS112S4,SAF77DRS132S4,SAF77Y71S4,SAF77Y80S4,SAF77Y90S4,SAF77Y100S4,SAF77Y112S4,SAF77Y132S4,SAF77DV71M4,SAF77DV80M4,SAF77DV90M4,SAF77DV100M4,SAF77DV112M4,SAF77DV132M4,SAF77DT71M4,SAF77DT80M4,SAF77DT90M4,SAF77DT100M4,SAF77DT112M4,SAF77DT132M4,SAF77DRE71M4,SAF77DRE80M4,SAF77DRE90M4,SAF77DRE100M4,SAF77DRE112M4,SAF77DRE132M4,SAF77DRS71M4,SAF77DRS80M4,SAF77DRS90M4,SAF77DRS100M4,SAF77DRS112M4,SAF77DRS132M4,SAF77Y71M4,SAF77Y80M4,SAF77Y90M4,SAF77Y100M4,SAF77Y112M4,SAF77Y132M4,SAF77DV71L4,SAF77DV80L4,SAF77DV90L4,SAF77DV100L4,SAF77DV112L4,SAF77DV132L4,SAF77DT71L4,SAF77DT80L4,SAF77DT90L4,SAF77DT100L4,SAF77DT112L4,SAF77DT132L4,SAF77DRE71L4,SAF77DRE80L4,SAF77DRE90L4,SAF77DRE100L4,SAF77DRE112L4,SAF77DRE132L4,SAF77DRS71L4,SAF77DRS80L4,SAF77DRS90L4,SAF77DRS100L4,SAF77DRS112L4,SAF77DRS132L4,SAF77Y71L4,SAF77Y80L4,SAF77Y90L4,SAF77Y100L4,SAF77Y112L4,SAF77Y132L4

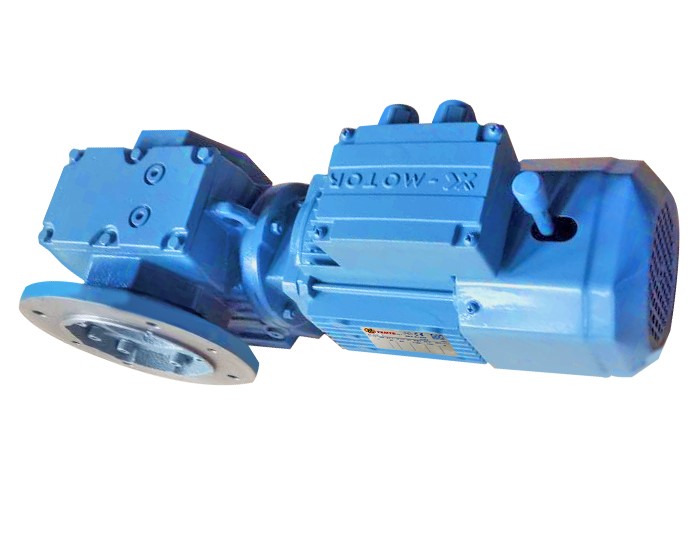

SAF系列減速電機SAF77減速機配各種電機實物圖：
SAF77減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-safxiliejiansuji-cn.html
推薦類似型號：減速機S77
關鍵詞:伺服電機渦輪渦桿減速機_立式蝸桿減速機_立式蝸輪蝸桿減速機_GSAF系列減速機
SAF系列蝸輪蝸桿減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13826972124，留言告知工程師參數要求
標簽: SAF77減速器 SAF77減速機 減速電機SAF77 SAF77減速機尺寸圖紙 GSAF77減速機尺寸圖紙
- 上一條SAF87減速機
- 下一條SAF67減速機
