S87減速機電機功率：S87Y0.12KW,S87Y0.18KW,S87Y0.25KW,S87Y0.37KW,S87Y0.55KW,S87Y0.75KW,S87Y1.1KW,S87Y1.5KW,S87Y2.2KW,S87Y3KW,S87Y4KW,S87Y5.5KW,S87Y7.5KW,S87Y11KW,S87Y15KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

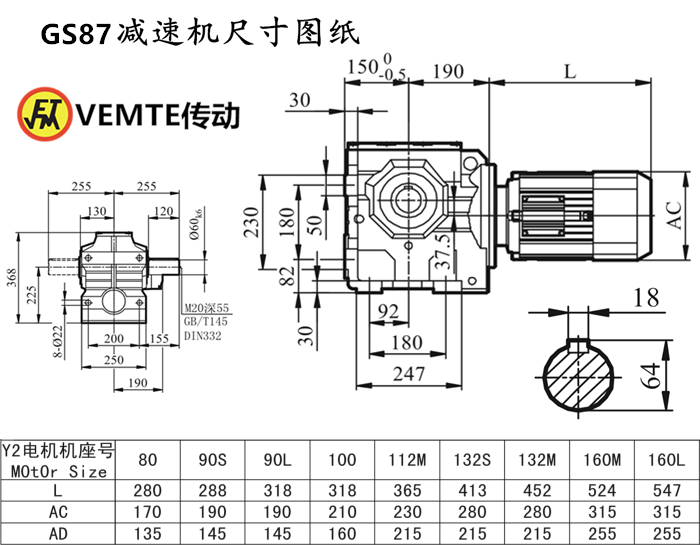

S87減速機安裝尺寸：輸出軸+鍵Φ64（可定做），高368*寬390（帶輸出軸）*長340

S系列減速機S87減速機減速比：減速器288比,減速器258.18比,減速器222.4比,減速器202.96比,減速器180比,減速器151.3比,減速器139.05比,減速器123.48比,減速器110.4比,減速器99.26比,減速器91.2比,減速器86.15比,減速器81.76比,減速器77.14比,減速器70.43比,減速器64.27比,減速器64比,減速器57比,減速器47.91比,減速器44.03比,減速器39.1比,減速器34.96比,減速器31.43比,減速器27.28比,減速器25.5比,減速器24.43比,減速器21.43比,減速器20.27比,減速器19.7比,減速器17.49比,減速器15.64比,減速器14.06比,減速器12.21比,減速器10.93比,減速器9.07比,減速器7.88比

S87減速機輸出轉數：4.9轉減速機,5.4轉減速機,6.3轉減速機,6.9轉減速機,7.8轉減速機,9.3轉減速機,10轉減速機,11轉減速機,14轉減速機,15轉減速機,16轉減速機,17轉減速機,18轉減速機,20轉減速機,22轉減速機,25轉減速機,29轉減速機,32轉減速機,36轉減速機,40轉減速機,45轉減速機,51轉減速機,55轉減速機,57轉減速機,65轉減速機,69轉減速機,71轉減速機,80轉減速機,90轉減速機,100轉減速機,115轉減速機,128轉減速機,154轉減速機,178轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

S87斜齒輪蝸輪蝸桿減速機輸出扭矩：減速箱2280N.m,減速箱2260N.m,減速箱2210N.m,減速箱2150N.m,減速箱2100N.m,減速箱2060N.m,減速箱2000N.m,減速箱1960N.m,減速箱1510N.m,減速箱1880N.m,減速箱1600N.m,減速箱1820N.m,減速箱1700N.m,減速箱1240N.m,減速箱1140N.m,減速箱1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

S87減速機電機型號:

S87DV71S4,S87DV80S4,S87DV90S4,S87DV100S4,S87DV112S4,S87DV132S4,S87DV160S4,S87DT71S4,S87DT80S4,S87DT90S4,S87DT100S4,S87DT112S4,S87DT132S4,S87DT160S4,S87DRE71S4,S87DRE80S4,S87DRE90S4,S87DRE100S4,S87DRE112S4,S87DRE132S4,S87DRE160S4,S87DRS71S4,S87DRS80S4,S87DRS90S4,S87DRS100S4,S87DRS112S4,S87DRS132S4,S87DRS160S4,S87Y71S4,S87Y80S4,S87Y90S4,S87Y100S4,S87Y112S4,S87Y132S4,S87Y160S4,S87DV71M4,S87DV80M4,S87DV90M4,S87DV100M4,S87DV112M4,S87DV132M4,S87DV160M4,S87DT71M4,S87DT80M4,S87DT90M4,S87DT100M4,S87DT112M4,S87DT132M4,S87DT160M4,S87DRE71M4,S87DRE80M4,S87DRE90M4,S87DRE100M4,S87DRE112M4,S87DRE132M4,S87DRE160M4,S87DRS71M4,S87DRS80M4,S87DRS90M4,S87DRS100M4,S87DRS112M4,S87DRS132M4,S87DRS160M4,S87Y71M4,S87Y80M4,S87Y90M4,S87Y100M4,S87Y112M4,S87Y132M4,S87Y160M4,S87DV71L4,S87DV80L4,S87DV90L4,S87DV100L4,S87DV112L4,S87DV132L4,S87DV160L4,S87DT71L4,S87DT80L4,S87DT90L4,S87DT100L4,S87DT112L4,S87DT132L4,S87DT160L4,S87DRE71L4,S87DRE80L4,S87DRE90L4,S87DRE100L4,S87DRE112L4,S87DRE132L4,S87DRE160L4,S87DRS71L4,S87DRS80L4,S87DRS90L4,S87DRS100L4,S87DRS112L4,S87DRS132L4,S87DRS160L4,S87Y71L4,S87Y80L4,S87Y90L4,S87Y100L4,S87Y112L4,S87Y132L4,S87Y160L4

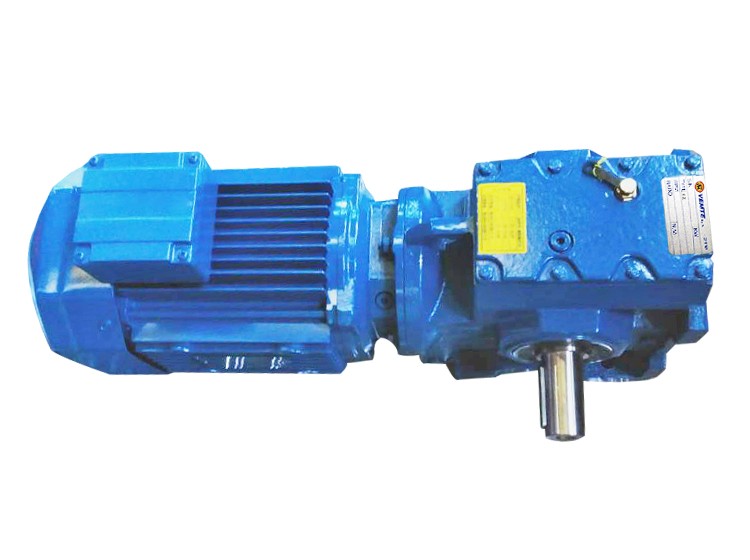

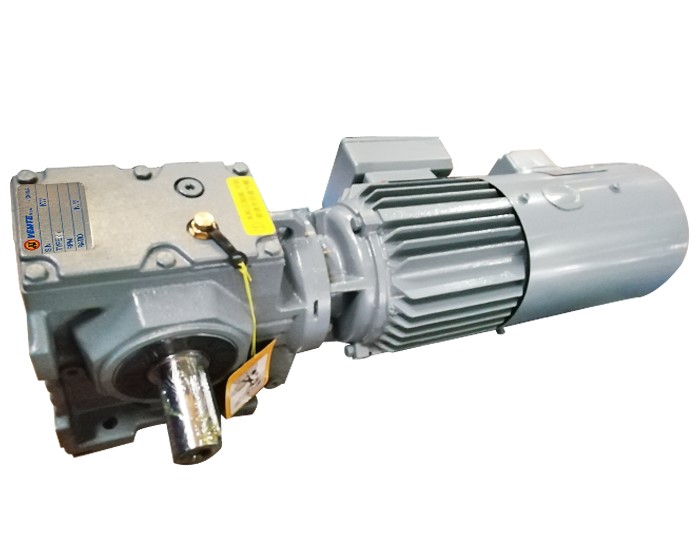

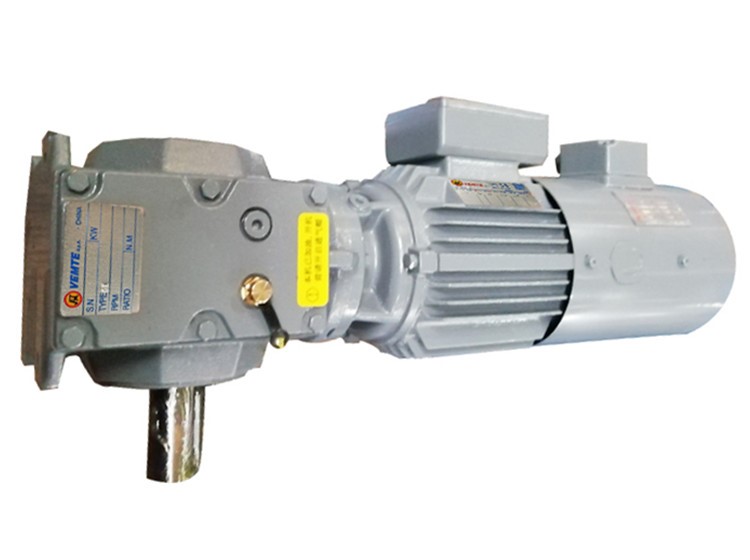

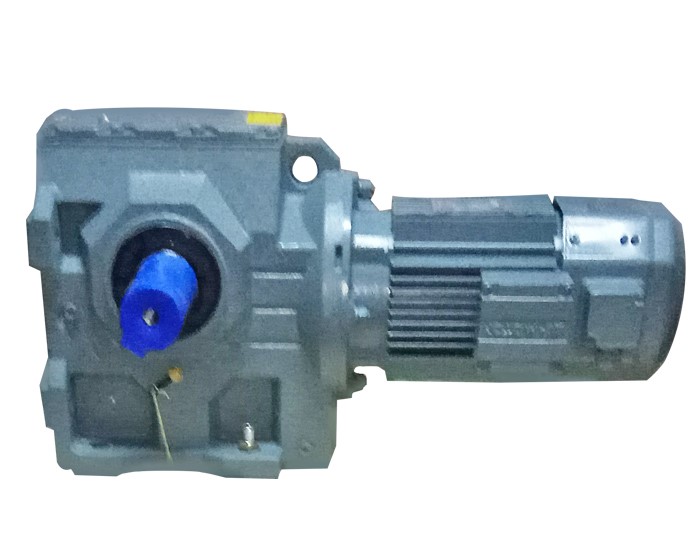

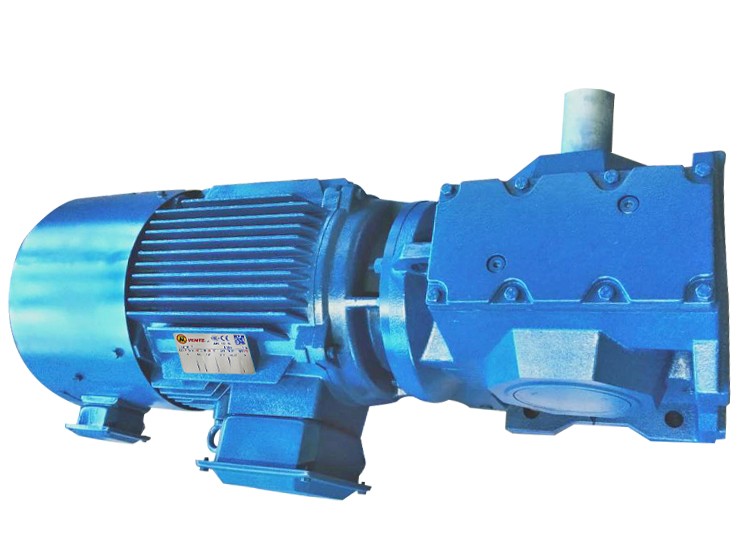

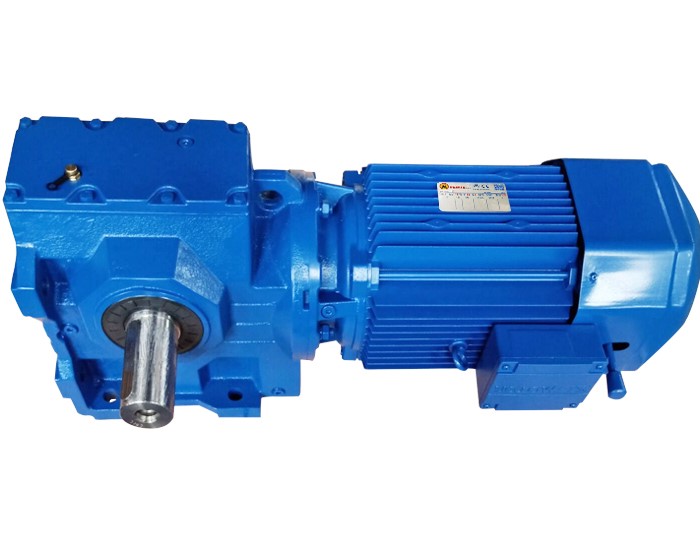

S87減速機配各種電機的實物圖：

蝸輪蝸桿減速機廠S87減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-sxiliejiansuji-cn.html

推薦類似型號：減速機SF87
