S67減速機電機功率：S67Y0.12KW,S67Y0.18KW,S67Y0.25KW,S67Y0.37KW,S67Y0.55KW,S67Y0.75KW,S67Y1.1KW,S67Y1.5KW,S67Y2.2KW,S67Y3KW,S67Y4KW,S67Y5.5KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

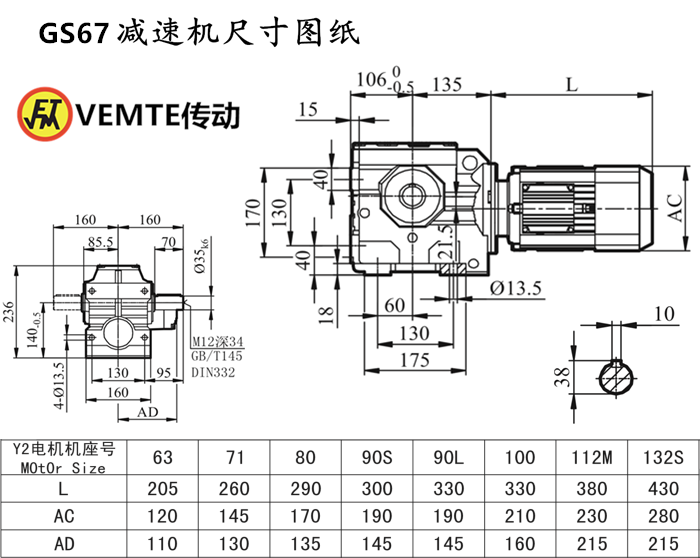

S系列減速電機S67安裝尺寸：輸出軸+鍵Φ38（可定做），高236*寬250（帶輸出軸）*長241

S67蝸輪蝸桿減速機減速比：減速器217.41比,減速器190.11比,減速器180.6比,減速器158.45比,減速器134.4比,減速器121.33比,減速器106.75比,減速器100.8比,減速器85.83比,減速器78比,減速器75.06比,減速器67.57比,減速器65.63比,減速器62.35比,減速器58.8比,減速器54.7比,減速器46.4比,減速器41.89比,減速器36.85比,減速器34.8比,減速器29.63比,減速器26.93比,減速器24.44比,減速器23.33比,減速器23.22比,減速器20.37比,減速器20.3比,減速器17.28比,減速器15.60比,減速器13.73比,減速器12.96比,減速器11.03比,減速器10.03比,減速器8.69比,減速器7.56比

S67渦輪減速電機輸出轉數：6.4轉減速機,7.4轉減速機,7.8轉減速機,8.8轉減速機,10轉減速機,12轉減速機,13轉減速機,14轉減速機,16轉減速機,18轉減速機,19轉減速機,21轉減速機,22轉減速機,24轉減速機,26轉減速機,30轉減速機,33轉減速機,38轉減速機,40轉減速機,47轉減速機,52轉減速機,57轉減速機,60轉減速機,69轉減速機,81轉減速機,90轉減速機,102轉減速機,108轉減速機,127轉減速機,140轉減速機,161轉減速機,185轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

S67減速機輸出扭矩：減速箱240N.m,減速箱295N.m,減速箱335N.m,減速箱340N.m,減速箱425N.m,減速箱480N.m,減速箱500N.m,減速箱520N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

S67減速機電機型號：S67DV63S4,S67DV71S4,S67DV80S4,S67DV90S4,S67DV100S4,S67DV112S4,S67DV132S4,S67DT63S4,S67DT71S4,S67DT80S4,S67DT90S4,S67DT100S4,S67DT112S4,S67DT132S4,S67DRE63S4,S67DRE71S4,S67DRE80S4,S67DRE90S4,S67DRE100S4,S67DRE112S4,S67DRE132S4,S67DRS63S4,S67DRS71S4,S67DRS80S4,S67DRS90S4,S67DRS100S4,S67DRS112S4,S67DRS132S4,S67Y63S4,S67Y71S4,S67Y80S4,S67Y90S4,S67Y100S4,S67Y112S4,S67Y132S4,S67DV63M4,S67DV71M4,S67DV80M4,S67DV90M4,S67DV100M4,S67DV112M4,S67DV132M4,S67DT63M4,S67DT71M4,S67DT80M4,S67DT90M4,S67DT100M4,S67DT112M4,S67DT132M4,S67DRE63M4,S67DRE71M4,S67DRE80M4,S67DRE90M4,S67DRE100M4,S67DRE112M4,S67DRE132M4,S67DRS63M4,S67DRS71M4,S67DRS80M4,S67DRS90M4,S67DRS100M4,S67DRS112M4,S67DRS132M4,S67Y63M4,S67Y71M4,S67Y80M4,S67Y90M4,S67Y100M4,S67Y112M4,S67Y132M4,S67DV63L4,S67DV71L4,S67DV80L4,S67DV90L4,S67DV100L4,S67DV112L4,S67DV132L4,S67DT63L4,S67DT71L4,S67DT80L4,S67DT90L4,S67DT100L4,S67DT112L4,S67DT132L4,S67DRE63L4,S67DRE71L4,S67DRE80L4,S67DRE90L4,S67DRE100L4,S67DRE112L4,S67DRE132L4,S67DRS63L4,S67DRS71L4,S67DRS80L4,S67DRS90L4,S67DRS100L4,S67DRS112L4,S67DRS132L4,S67Y63L4,S67Y71L4,S67Y80L4,S67Y90L4,S67Y100L4,S67Y112L4,S67Y132L4,

S67減速機配各種電機的實物圖：

S67減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-sxiliejiansuji-cn.html

推薦類似型號：減速機SF67
