R37齒輪減速器電機功率：

R37Y0.18KW,R37Y0.25KW,R37Y0.37KW,R37Y0.55KW,R37Y0.75KW,R37Y1.1KW,R37Y1.5KW,R37Y2.2KW,R37Y3KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

R37減速機減速比：

3.41比減速器,4.05比減速器,4.32比減速器,5.06比減速器,5.67比減速器,6.67比減速器,7.97比減速器,9.47比減速器,10.11比減速器,11.83比減速器,13.25比減速器,15.6比減速器,18.05比減速器,19.31比減速器,22.27比減速器,24.42比減速器,26.03比減速器,28.32比減速器,28.73比減速器,32.4比減速器,36.72比減速器,39.17比減速器,44.81比減速器,48.08比減速器,55.76比減速器,61.18比減速器,69.33比減速器,73.96比減速器,84.61比減速器,90.77比減速器,105.28比減速器,123.66比減速器,134.82比減速器

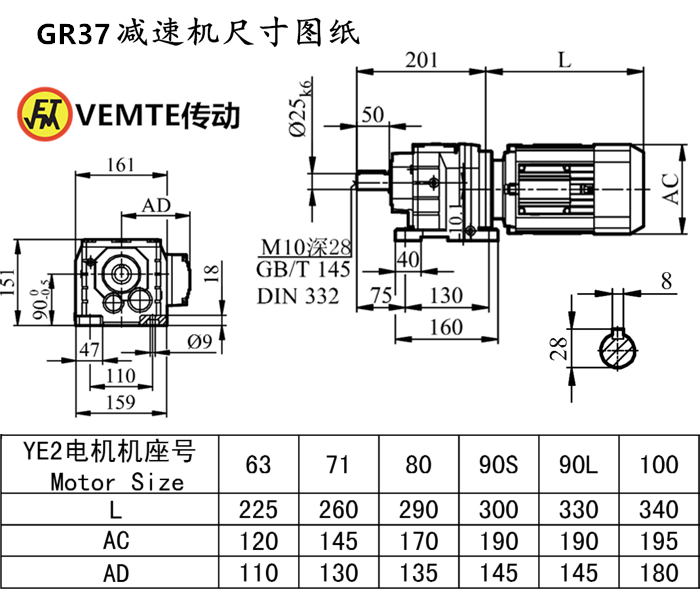

減速器R系列R37減速機安裝尺寸：輸出軸Φ25+鍵3（可定做），高151*寬159*長201（帶輸出軸）

GR系列減速器R37減速機輸出轉數：

10轉減速機,11轉減速機,13轉減速機,15轉減速機,17轉減速機,19轉減速機,20轉減速機,23轉減速機,25轉減速機,29轉減速機,31轉減速機,36轉減速機,38轉減速機,43轉減速機,49轉減速機,54轉減速機,57轉減速機,63轉減速機,73轉減速機,78轉減速機,90轉減速機,106轉減速機,118轉減速機,138轉減速機,148轉減速機,176轉減速機,210轉減速機,247轉減速機,277轉減速機,324轉減速機,346轉減速機,411轉減速機,。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R37減速機輸出扭矩：

減速箱112N.m,減速箱122N.m,減速箱126N.m,減速箱135N.m,減速箱142N.m,減速箱144N.m,減速箱156N.m,減速箱167N.m,減速箱170N.m,減速箱183N.m,減速箱185N.m,減速箱190N.m,減速箱200N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R37減速機電機型號:齒輪減速器

R37DV63S4,R37DV71S4,R37DV80S4,R37DV90S4,R37DV100S4,R37DT63S4,R37DT71S4,R37DT80S4,R37DT90S4,R37DT100S4,R37DRS63S4,R37DRS71S4,R37DRS80S4,R37DRS90S4,R37DRS100S4,R37DRE63S4,R37DRE71S4,R37DRE80S4,R37DRE90S4,R37DRE100S4,R37Y63S4,R37Y71S4,R37Y80S4,R37Y90S4,R37Y100S4,R37DV63M4,R37DV71M4,R37DV80M4,R37DV90M4,R37DV100M4,R37DT63M4,R37DT71M4,R37DT80M4,R37DT90M4,R37DT100M4,R37DRS63M4,R37DRS71M4,R37DRS80M4,R37DRS90M4,R37DRS100M4,R37DRE63M4,R37DRE71M4,R37DRE80M4,R37DRE90M4,R37DRE100M4,R37Y63M4,R37Y71M4,R37Y80M4,R37Y90M4,R37Y100M4,R37DV63L4,R37DV71L4,R37DV80L4,R37DV90L4,R37DV100L4,R37DT63L4,R37DT71L4,R37DT80L4,R37DT90L4,R37DT100L4,R37DRS63L4,R37DRS71L4,R37DRS80L4,R37DRS90L4,R37DRS100L4,R37DRE63L4,R37DRE71L4,R37DRE80L4,R37DRE90L4,R37DRE100L4,R37Y63L4,R37Y71L4,R37Y80L4,R37Y90L4,R37Y100L4

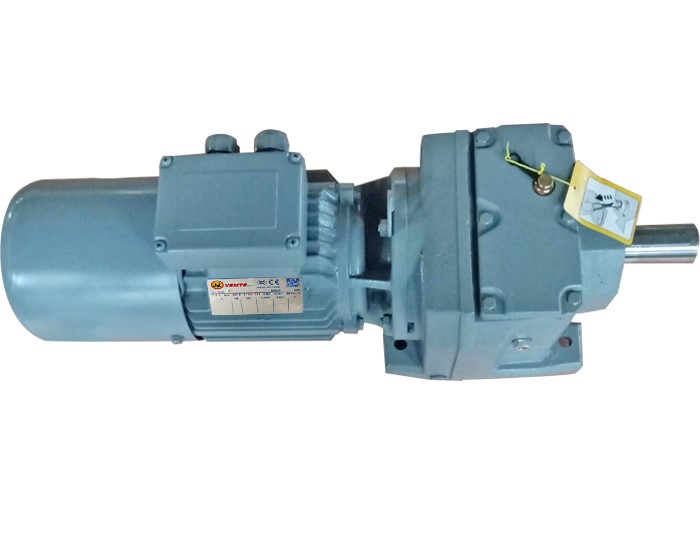

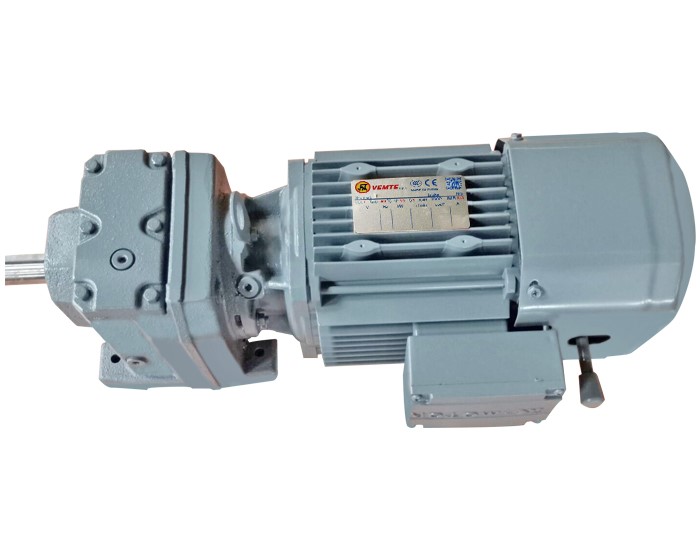

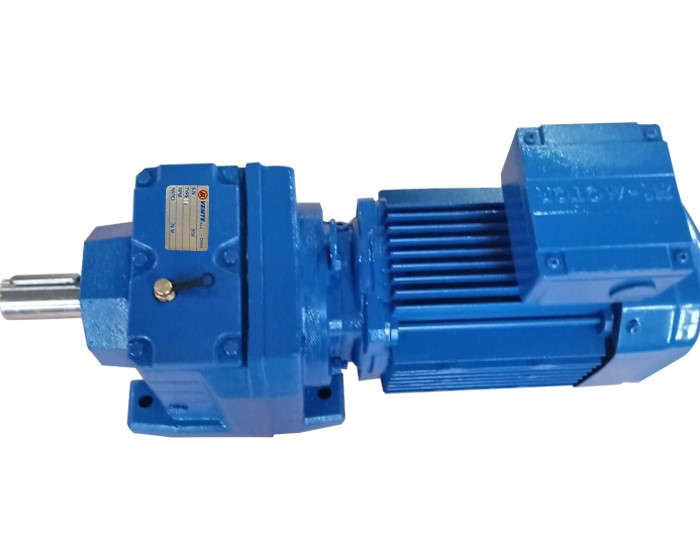

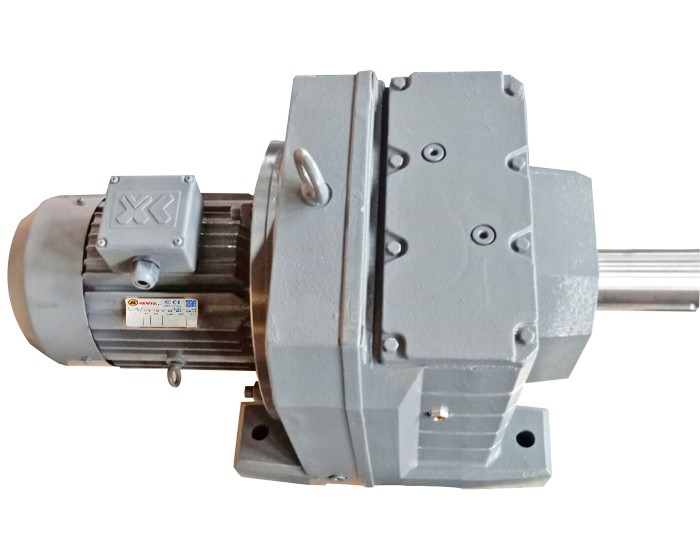

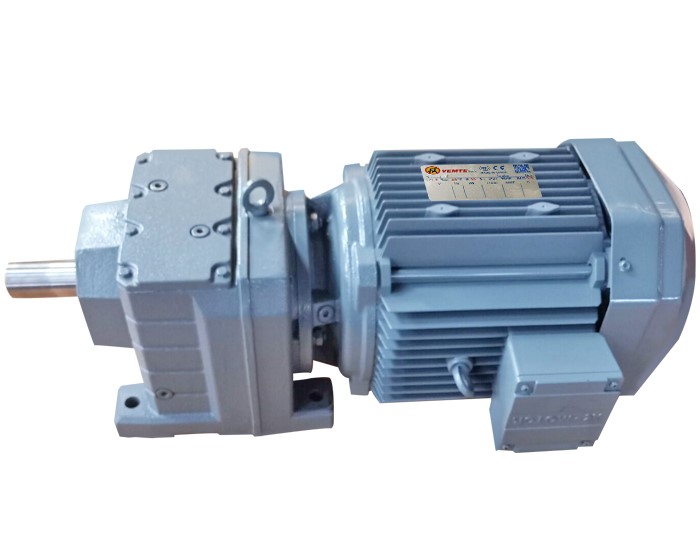

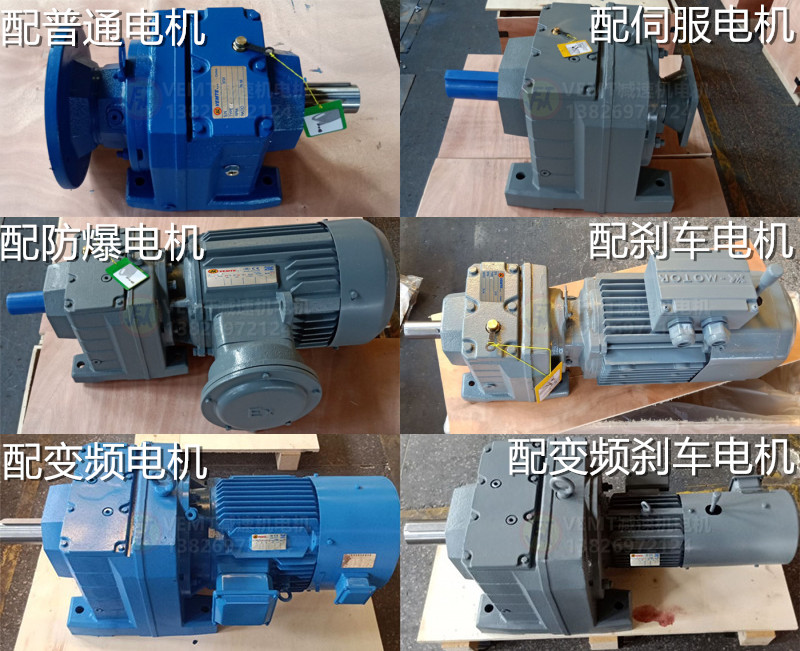

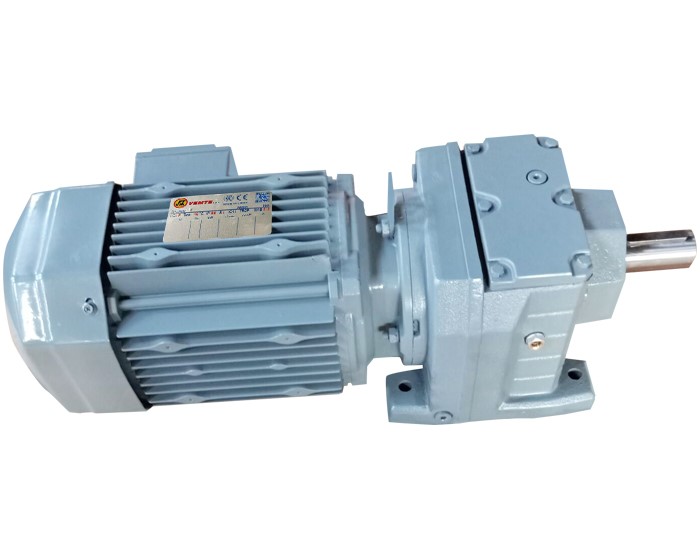

R37減速機配各種電機的實物圖：

R37減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：減速機RF37
