R167齒輪減速電機功率：

R167Y11KW,R167Y15KW,R167Y18.5KW,R167Y22KW,R167Y30KW,R167Y37KW,R167Y45KW,R167Y55KW,R167Y75KW,R167Y90KW,R167Y110KW,R167Y132KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

R167減速機減速比：

10.24比減速器,11.99比減速器,14.48比減速器,16.98比減速器,19.03比減速器,21.85比減速器,23.71比減速器,24.57比減速器,27.96比減速器,30.71比減速器,34.41比減速器,37.74比減速器,39.92比減速器,44.87比減速器,46比減速器,51.76比減速器,58.65比減速器,67.4比減速器,73.7比減速器,82.91比減速器,93.19比減速器,98比減速器,107.49比減速器,121.81比減速器,139比減速器,153.07比減速器,186.93比減速器,229.71比減速器

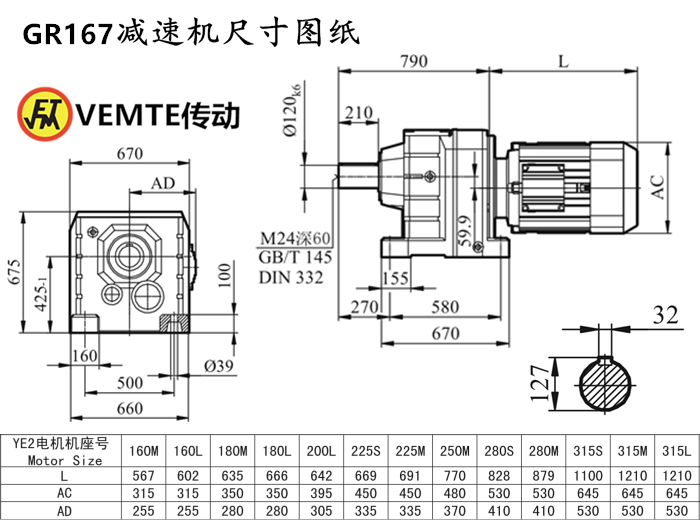

同向減速器R167安裝尺寸：輸出軸Φ120+鍵7（可定做），高675*寬660*長790（帶輸出軸）

R167同軸減速電機輸出轉數：6.1轉減速機,7.5轉減速機,9.1轉減速機,10轉減速機,11轉減速機,13轉減速機,15轉減速機,17轉減速機,19轉減速機,21轉減速機,24轉減速機,27轉減速機,30轉減速機,31轉減速機,35轉減速機,37轉減速機,41轉減速機,46轉減速機,50轉減速機,57轉減速機,59轉減速機,64轉減速機,74轉減速機,82轉減速機,97轉減速機,117轉減速機,137轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R167減速機輸出扭矩：減速箱7000N.m,減速箱9000N.m,減速箱10000N.m,減速箱13000N.m,減速箱14000N.m,減速箱15000N.m,減速箱16000N.m,減速箱17000N.m,減速箱18000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R167減速機電機型號:

R167DV160S4,R167DV180S4,R167DV200S4,R167DV225S4,R167DV250S4,R167DV280S4,R167DV315S4,R167DT160S4,R167DT180S4,R167DT200S4,R167DT225S4,R167DT250S4,R167DT280S4,R167DT315S4,R167DRS160S4,R167DRS180S4,R167DRS200S4,R167DRS225S4,R167DRS250S4,R167DRS280S4,R167DRS315S4,R167DRE160S4,R167DRE180S4,R167DRE200S4,R167DRE225S4,R167DRE250S4,R167DRE280S4,R167DRE315S4,R167Y160S4,R167Y180S4,R167Y200S4,R167Y225S4,R167Y250S4,R167Y280S4,R167Y315S4,R167DV160M4,R167DV180M4,R167DV200M4,R167DV225M4,R167DV250M4,R167DV280M4,R167DV315M4,R167DT160M4,R167DT180M4,R167DT200M4,R167DT225M4,R167DT250M4,R167DT280M4,R167DT315M4,R167DRS160M4,R167DRS180M4,R167DRS200M4,R167DRS225M4,R167DRS250M4,R167DRS280M4,R167DRS315M4,R167DRE160M4,R167DRE180M4,R167DRE200M4,R167DRE225M4,R167DRE250M4,R167DRE280M4,R167DRE315M4,R167Y160M4,R167Y180M4,R167Y200M4,R167Y225M4,R167Y250M4,R167Y280M4,R167Y315M4,R167DV160L4,R167DV180L4,R167DV200L4,R167DV225L4,R167DV250L4,R167DV280L4,R167DV315L4,R167DT160L4,R167DT180L4,R167DT200L4,R167DT225L4,R167DT250L4,R167DT280L4,R167DT315L4,R167DRS160L4,R167DRS180L4,R167DRS200L4,R167DRS225L4,R167DRS250L4,R167DRS280L4,R167DRS315L4,R167DRE160L4,R167DRE180L4,R167DRE200L4,R167DRE225L4,R167DRE250L4,R167DRE280L4,R167DRE315L4,R167Y160L4,R167Y180L4,R167Y200L4,R167Y225L4,R167Y250L4,R167Y280L4,R167Y315L4,

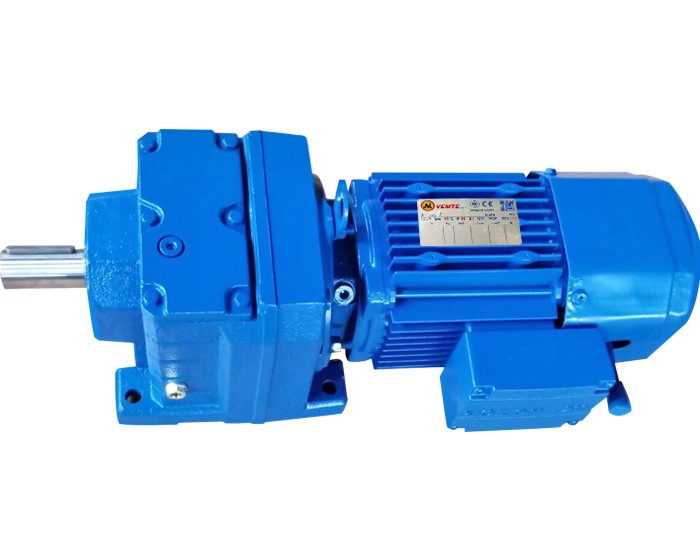

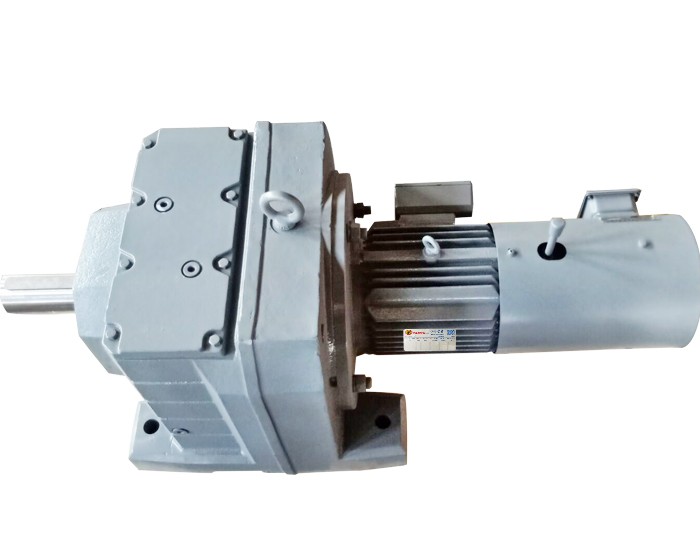

R167減速機配各種電機的實物圖：

R167減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：減速機RF167
