KA67錐齒輪減速馬達功率：

KA67Y0.18KW,KA67Y0.25KW,KA67Y0.37KW,KA67Y0.55KW,KA67Y0.75KW,KA67Y1.1KW,KA67Y1.5KW,KA67Y2.2KW,KA67Y3KW,KA67Y4KW,KA67Y5.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KA67減速機減速比：KA系列減速機

1:144.79減速器,1:123.54減速器,1:108.03減速器,1:102.62減速器,1:90.04減速器,1:76.37減速器,1:68.95減速器,1:60.66減速器,1:57.28減速器,1:48.77減速器,1:44.32減速器,1:38.39減速器,1:35.62減速器,1:30.22減速器,1:27.28減速器,1:24減速器,1:22.66減速器,1:19.3減速器,1:17.54減速器,1:15.19減速器,1:13.22減速器,1:12.48減速器,1:10.63減速器,1:9.66減速器,1:8.37減速器,1:7.28減速器,1:5.2減速器

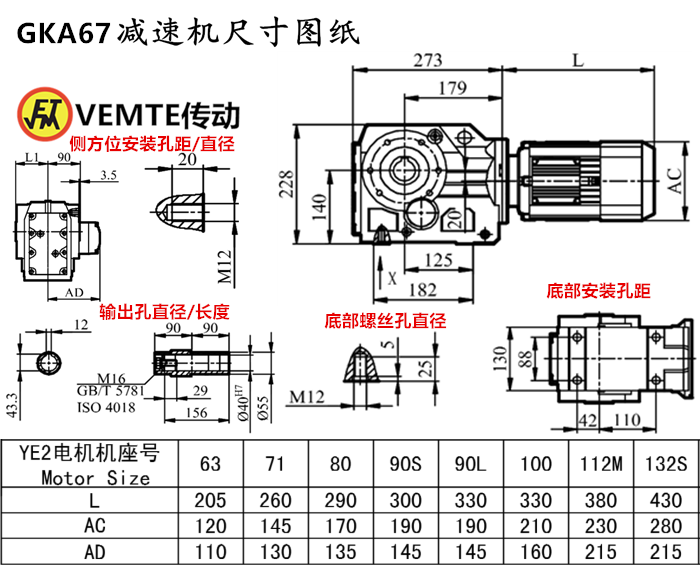

KA67減速機安裝尺寸：輸出孔+鍵Φ43.3（可定做），高228*寬170*長273

KA67直角軸減速電機輸出轉數：

9.7rpm減速機,11rpm減速機,13rpm減速機,14rpm減速機,16rpm減速機,18rpm減速機,20rpm減速機,23rpm減速機,24rpm減速機,29rpm減速機,32rpm減速機,36rpm減速機,39rpm減速機,46rpm減速機,51rpm減速機,58rpm減速機,62rpm減速機,73rpm減速機,80rpm減速機,92rpm減速機,106rpm減速機,112rpm減速機,132rpm減速機,145rpm減速機,167rpm減速機,192rpm減速機,269rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KA67減速機輸出扭矩：820Nm減速箱,780Nm減速箱,760Nm減速箱,740Nm減速箱,700Nm減速箱,670Nm減速箱,530Nm減速箱,500Nm減速箱,480Nm減速箱,440Nm減速箱,420Nm減速箱,350Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

KA減速機KA67減速機電機型號：KA67DRE100M4,KA67DRE112M4,KA67DRE132M4,KA67DRE63M4,KA67DRE71M4,KA67DRE80M4,KA67DRE90M4,KA67DRS100M4,KA67DRS112M4,KA67DRS132M4,KA67DRS63M4,KA67DRS71M4,KA67DRS80M4,KA67DRS90M4,KA67DT100M4,KA67DT112M4,KA67DT132M4,KA67DT63M4,KA67DT71M4,KA67DT80M4,KA67DT90M4,KA67DV100M4,KA67DV112M4,KA67DV132M4,KA67DV63M4,KA67DV71M4,KA67DV80M4,KA67DV90M4,KA67Y100M4,KA67Y112M4,KA67Y132M4,KA67Y63M4,KA67Y71M4,KA67Y80M4,KA67Y90M4,KA67DRE100S4,KA67DRE112S4,KA67DRE132S4,KA67DRE63S4,KA67DRE71S4,KA67DRE80S4,KA67DRE90S4,KA67DRS100S4,KA67DRS112S4,KA67DRS132S4,KA67DRS63S4,KA67DRS71S4,KA67DRS80S4,KA67DRS90S4,KA67DT100S4,KA67DT112S4,KA67DT132S4,KA67DT63S4,KA67DT71S4,KA67DT80S4,KA67DT90S4,KA67DV100S4,KA67DV112S4,KA67DV132S4,KA67DV63S4,KA67DV71S4,KA67DV80S4,KA67DV90S4,KA67Y100S4,KA67Y112S4,KA67Y132S4,KA67Y63S4,KA67Y71S4,KA67Y80S4,KA67Y90S4,KA67DRE100L4,KA67DRE112L4,KA67DRE132L4,KA67DRE63L4,KA67DRE71L4,KA67DRE80L4,KA67DRE90L4,KA67DRS100L4,KA67DRS112L4,KA67DRS132L4,KA67DRS63L4,KA67DRS71L4,KA67DRS80L4,KA67DRS90L4,KA67DT100L4,KA67DT112L4,KA67DT132L4,KA67DT63L4,KA67DT71L4,KA67DT80L4,KA67DT90L4,KA67DV100L4,KA67DV112L4,KA67DV132L4,KA67DV63L4,KA67DV71L4,KA67DV80L4,KA67DV90L4,KA67Y100L4,KA67Y112L4,KA67Y132L4,KA67Y63L4,KA67Y71L4,KA67Y80L4,KA67Y90L4

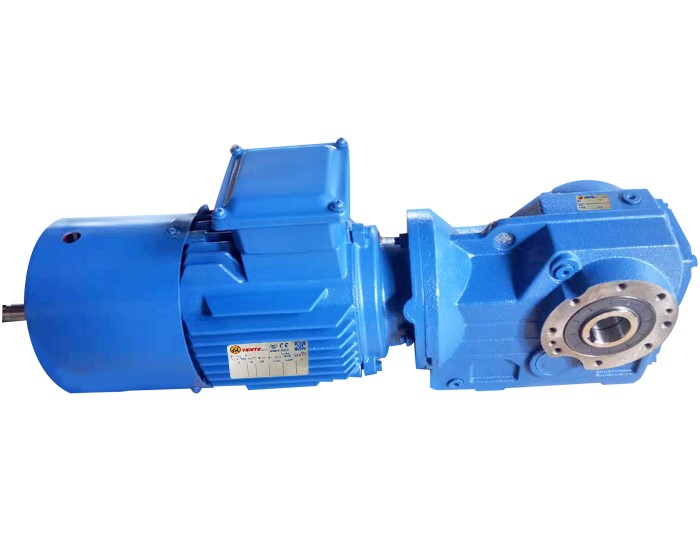

KA67減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KA67減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-kaxiliejiansuji-cn.html

推薦類似型號：減速機KAF67
