KA157減速機詳細信息
KA157減速機
KA157減速機電機功率:KA157Y0.55KW,KA157Y0.75KW,KA157Y1.1KW,KA157Y1.5KW,KA157Y2.2KW,KA157Y3KW,KA157Y4KW,KA157Y5.5KW,KA157Y7.5KW,KA157Y11KW,KA157Y15KW,KA157Y18.5KW,KA157Y22KW,KA157Y30KW,KA157Y37KW,KA157Y45KW,KA157Y55KW,KA157Y75KW,KA157Y90KW,KA157Y110KW,KA157Y132KW,KA157Y160KW。(可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機)。
KA157減速機減速比:伺服減速機
1:150.41減速器,1:122.39減速器,1:100.22減速器,1:91.65減速器,1:79.75減速器,1:70.38減速器,1:61.02減速器,1:54.29減速器,1:46.79減速器,1:38.02減速器,1:31.3減速器,1:27.62減速器,1:23.95減速器,1:21.31減速器,1:18.37減速器,1:14.92減速器,1:12.65減速器

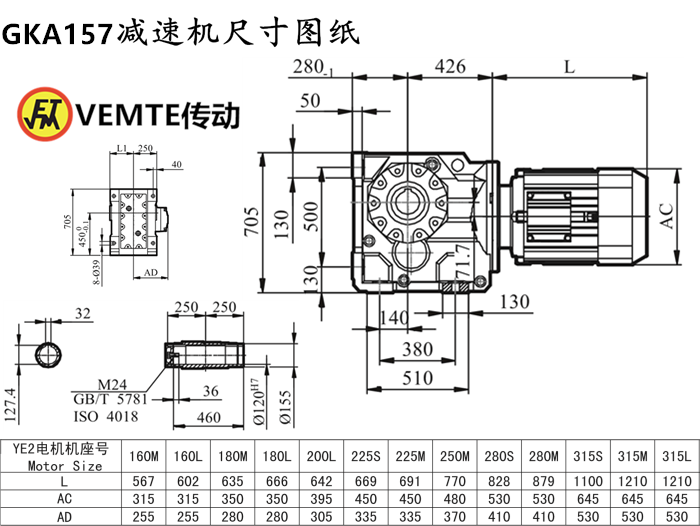

轉角減速電機KA157減速機安裝尺寸:輸出孔+鍵Φ127.4(可定做),高705*寬500*長706
KA157雙出軸減速機輸出轉數:
9.3rpm減速機,11rpm減速機,14rpm減速機,15rpm減速機,18rpm減速機,20rpm減速機,23rpm減速機,26rpm減速機,30rpm減速機,37rpm減速機,45rpm減速機,51rpm減速機,58rpm減速機,66rpm減速機,76rpm減速機,94rpm減速機,111rpm減速機。(以上rpm/min數均為四級電機算出的,可用兩級電機,六級電機計算,也可以用變頻電機調速)
KA157減速機輸出扭矩:
18000Nm減速箱,17000Nm減速箱。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者兩個減速機組合使用)
GKA系列減速機GKA157減速機電機型號:KA157DV160S4,KA157DV180S4,KA157DV200S4,KA157DV225S4,KA157DV250S4,KA157DV280S4,KA157DV315S4,KA157DT160S4,KA157DT180S4,KA157DT200S4,KA157DT225S4,KA157DT250S4,KA157DT280S4,KA157DT315S4,KA157DRS160S4,KA157DRS180S4,KA157DRS200S4,KA157DRS225S4,KA157DRS250S4,KA157DRS280S4,KA157DRS315S4,KA157DRE160S4,KA157DRE180S4,KA157DRE200S4,KA157DRE225S4,KA157DRE250S4,KA157DRE280S4,KA157DRE315S4,KA157Y160S4,KA157Y180S4,KA157Y200S4,KA157Y225S4,KA157Y250S4,KA157Y280S4,KA157Y315S4,KA157DV160M4,KA157DV180M4,KA157DV200M4,KA157DV225M4,KA157DV250M4,KA157DV280M4,KA157DV315M4,KA157DT160M4,KA157DT180M4,KA157DT200M4,KA157DT225M4,KA157DT250M4,KA157DT280M4,KA157DT315M4,KA157DRS160M4,KA157DRS180M4,KA157DRS200M4,KA157DRS225M4,KA157DRS250M4,KA157DRS280M4,KA157DRS315M4,KA157DRE160M4,KA157DRE180M4,KA157DRE200M4,KA157DRE225M4,KA157DRE250M4,KA157DRE280M4,KA157DRE315M4,KA157Y160M4,KA157Y180M4,KA157Y200M4,KA157Y225M4,KA157Y250M4,KA157Y280M4,KA157Y315M4,KA157DV160L4,KA157DV180L4,KA157DV200L4,KA157DV225L4,KA157DV250L4,KA157DV280L4,KA157DV315L4,KA157DT160L4,KA157DT180L4,KA157DT200L4,KA157DT225L4,KA157DT250L4,KA157DT280L4,KA157DT315L4,KA157DRS160L4,KA157DRS180L4,KA157DRS200L4,KA157DRS225L4,KA157DRS250L4,KA157DRS280L4,KA157DRS315L4,KA157DRE160L4,KA157DRE180L4,KA157DRE200L4,KA157DRE225L4,KA157DRE250L4,KA157DRE280L4,KA157DRE315L4,KA157Y160L4,KA157Y180L4,KA157Y200L4,KA157Y225L4,KA157Y250L4,KA157Y280L4,KA157Y315L4
KA157減速機配各種電機實物圖:可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
KA157減速機生產工廠展示:看廠請聯系微信13826972124,獲取位置,需提前一天預約http://30d35o.cn/product/list-kaxiliejiansuji-cn.html
推薦類似型號:減速機KAF157
關鍵詞:空心軸減速機_直角中空減速機_中孔輸出減速機_通孔減速電機_KA系列減速機
KA系列齒輪減速機型號:KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列直角減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-200KW之間
如需工程師幫選型,請加微信13826972124,留言告知工程師參數要求
標簽:  KA157減速機尺寸圖紙 KA157減速機 KA157減速器 KA157錐齒輪減速機 GKA157錐齒輪減速機
