減速機RXF77電機功率：

RXF77Y1.1KW,RXF77Y1.5KW,RXF77Y2.2KW,RXF77Y3KW,RXF77Y4KW,RXF77Y5.5KW,RXF77Y7.5KW,RXF77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

同向減速器RXF77減速比：

減速箱1.42比,減速箱1.67比,減速箱1.88比,減速箱2.13比,減速箱2.43比,減速箱2.7比,減速箱3.08比,減速箱3.25比,減速箱3.7比,減速箱4.04比,減速箱4.73比,減速箱5.35比,減速箱5.63比,減速箱6.41比,減速箱7.47比,減速箱8比

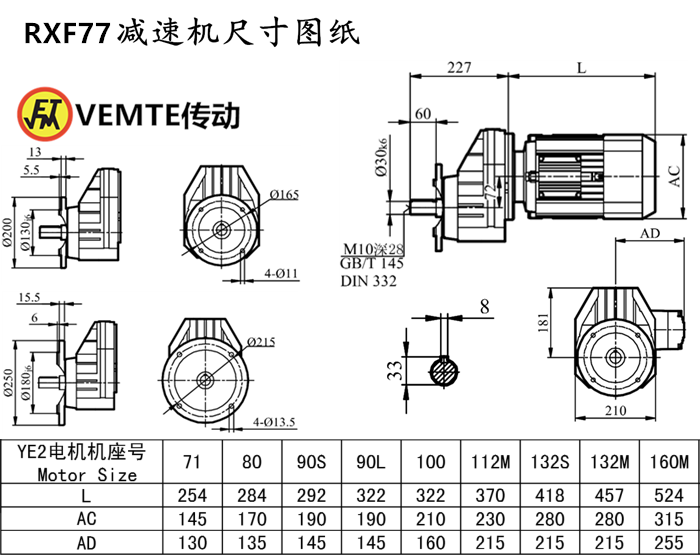

減速機RXF77安裝尺寸：輸出軸Φ30+鍵3（可定做），高270*寬210*長227（帶輸出軸）

減速機RXF77輸出轉數：

175rpm/min減速器,187rpm/min減速器,218rpm/min減速器,249rpm/min減速器,262rpm/min減速器,296rpm/min減速器,347rpm/min減速器,378rpm/min減速器,431rpm/min減速器,455rpm/min減速器,519rpm/min減速器,576rpm/min減速器,657rpm/min減速器,745rpm/min減速器,838rpm/min減速器,986rpm/min減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）RXF系列減速機

減速機RXF77輸出扭矩：

減速機53N.m,減速機57N.m,減速機103N.m,減速機110N.m,減速機123N.m,減速機143N.m,減速機153N.m,減速機155N.m,減速機173N.m,減速機182N.m,減速機187N.m,減速機193N.m,減速機200N.m,減速機215N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

GRXF系列減速器RXF77電機型號：RXF77DV71S4,RXF77DV80S4,RXF77DV90S4,RXF77DV100S4,RXF77DV112S4,RXF77DV132S4,RXF77DV160S4,RXF77DT71S4,RXF77DT80S4,RXF77DT90S4,RXF77DT100S4,RXF77DT112S4,RXF77DT132S4,RXF77DT160S4,RXF77DRS71S4,RXF77DRS80S4,RXF77DRS90S4,RXF77DRS100S4,RXF77DRS112S4,RXF77DRS132S4,RXF77DRS160S4,RXF77DRE71S4,RXF77DRE80S4,RXF77DRE90S4,RXF77DRE100S4,RXF77DRE112S4,RXF77DRE132S4,RXF77DRE160S4,RXF77Y71S4,RXF77Y80S4,RXF77Y90S4,RXF77Y100S4,RXF77Y112S4,RXF77Y132S4,RXF77Y160S4,RXF77DV71M4,RXF77DV80M4,RXF77DV90M4,RXF77DV100M4,RXF77DV112M4,RXF77DV132M4,RXF77DV160M4,RXF77DT71M4,RXF77DT80M4,RXF77DT90M4,RXF77DT100M4,RXF77DT112M4,RXF77DT132M4,RXF77DT160M4,RXF77DRS71M4,RXF77DRS80M4,RXF77DRS90M4,RXF77DRS100M4,RXF77DRS112M4,RXF77DRS132M4,RXF77DRS160M4,RXF77DRE71M4,RXF77DRE80M4,RXF77DRE90M4,RXF77DRE100M4,RXF77DRE112M4,RXF77DRE132M4,RXF77DRE160M4,RXF77Y71M4,RXF77Y80M4,RXF77Y90M4,RXF77Y100M4,RXF77Y112M4,RXF77Y132M4,RXF77Y160M4,RXF77DV71L4,RXF77DV80L4,RXF77DV90L4,RXF77DV100L4,RXF77DV112L4,RXF77DV132L4,RXF77DV160L4,RXF77DT71L4,RXF77DT80L4,RXF77DT90L4,RXF77DT100L4,RXF77DT112L4,RXF77DT132L4,RXF77DT160L4,RXF77DRS71L4,RXF77DRS80L4,RXF77DRS90L4,RXF77DRS100L4,RXF77DRS112L4,RXF77DRS132L4,RXF77DRS160L4,RXF77DRE71L4,RXF77DRE80L4,RXF77DRE90L4,RXF77DRE100L4,RXF77DRE112L4,RXF77DRE132L4,RXF77DRE160L4,RXF77Y71L4,RXF77Y80L4,RXF77Y90L4,RXF77Y100L4,RXF77Y112L4,RXF77Y132L4,RXF77Y160L4

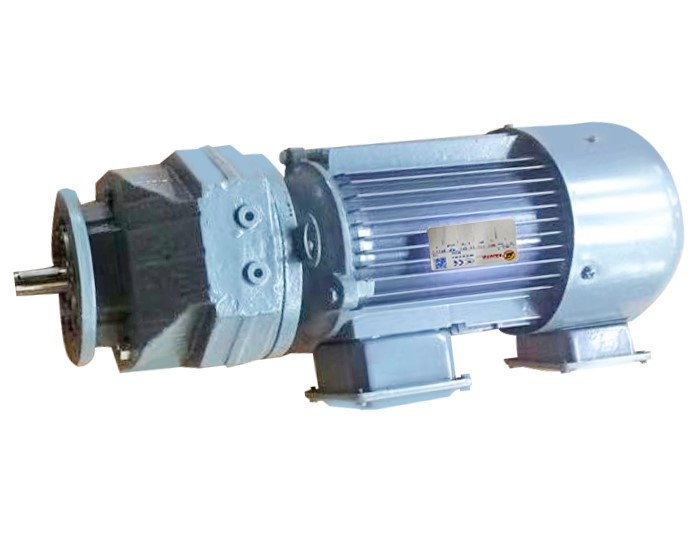

減速機RXF77配各種電機實物圖：

齒輪減速機廠RXF77生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-rxfxiliejiansuji-cn.html

推薦類似型號：R17減速機
