KF87錐齒輪減速馬達功率：KF87Y0.18KW,KF87Y0.25KW,KF87Y0.37KW,KF87Y0.55KW,KF87Y0.75KW,KF87Y1.1KW,KF87Y1.5KW,KF87Y2.2KW,KF87Y3KW,KF87Y4KW,KF87Y5.5KW,KF87Y7.5KW,KF87Y11KW,KF87Y15KW,KF87Y18.5KW,KF87Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

減速機KF87減速比：

1:197.37減速機,1:174.19減速機,1:164.34減速機,1:147.32減速機,1:126.91減速機,1:115.82減速機,1:102.71減速機,1:86.34減速機,1:79.34減速機,1:70.46減速機,1:63減速機,1:56.64減速機,1:49.16減速機,1:44.02減速機,1:36.52減速機,1:31.39減速機,1:27.88減速機,1:24.92減速機,1:22.41減速機,1:19.45減速機,1:17.42減速機,1:16減速機,1:14.45減速機,1:12.56減速機,1:11.17減速機,1:10減速機,1:8.29減速機,1:7.21減速機

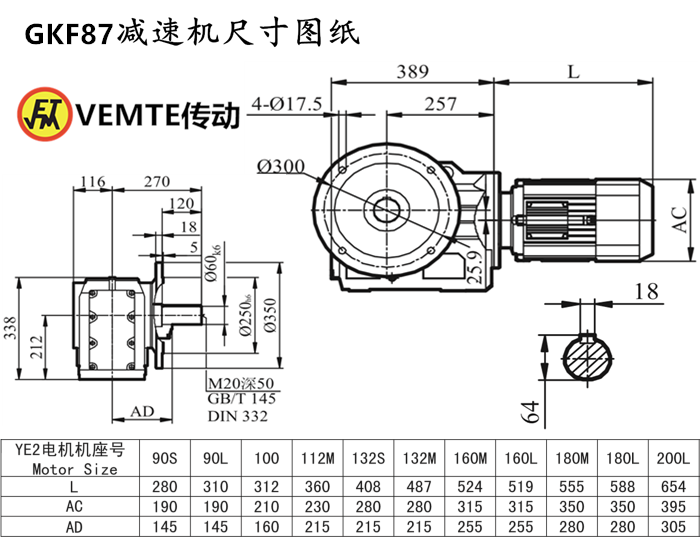

傘齒輪減速器KF87安裝尺寸：輸出軸+鍵Φ64（可定做），高340*寬386（帶輸出軸）*長389

減速箱KF87輸出轉數：

7.1rpm/min減速箱,8rpm/min減速箱,8.5rpm/min減速箱,9.5rpm/min減速箱,11rpm/min減速箱,12rpm/min減速箱,14rpm/min減速箱,16rpm/min減速箱,18rpm/min減速箱,20rpm/min減速箱,22rpm/min減速箱,25rpm/min減速箱,28rpm/min減速箱,32rpm/min減速箱,38rpm/min減速箱,45rpm/min減速箱,50rpm/min減速箱,56rpm/min減速箱,62rpm/min減速箱,72rpm/min減速箱,80rpm/min減速箱,88rpm/min減速箱,97rpm/min減速箱,111rpm/min減速箱,125rpm/min減速箱,140rpm/min減速箱,169rpm/min減速箱,194rpm/min減速箱。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）KF系列減速機

減速機KF87輸出扭矩：

減速器1300Nm,減速器1400Nm,減速器1500Nm,減速器1800Nm,減速器2000Nm,減速器2100Nm,減速器2200Nm,減速器2300Nm,減速器2500Nm,減速器2600Nm,減速器2700Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

伺服直角減速機KF87電機型號：KF87DV71S4,KF87DV80S4,KF87DV90S4,KF87DV100S4,KF87DV112S4,KF87DV132S4,KF87DV160S4,KF87DV180S4,KF87DV200S4,KF87DT71S4,KF87DT80S4,KF87DT90S4,KF87DT100S4,KF87DT112S4,KF87DT132S4,KF87DT160S4,KF87DT180S4,KF87DT200S4,KF87DRS71S4,KF87DRS80S4,KF87DRS90S4,KF87DRS100S4,KF87DRS112S4,KF87DRS132S4,KF87DRS160S4,KF87DRS180S4,KF87DRS200S4,KF87DRE71S4,KF87DRE80S4,KF87DRE90S4,KF87DRE100S4,KF87DRE112S4,KF87DRE132S4,KF87DRE160S4,KF87DRE180S4,KF87DRE200S4,KF87Y71S4,KF87Y80S4,KF87Y90S4,KF87Y100S4,KF87Y112S4,KF87Y132S4,KF87Y160S4,KF87Y180S4,KF87Y200S4,KF87DV71M4,KF87DV80M4,KF87DV90M4,KF87DV100M4,KF87DV112M4,KF87DV132M4,KF87DV160M4,KF87DV180M4,KF87DV200M4,KF87DT71M4,KF87DT80M4,KF87DT90M4,KF87DT100M4,KF87DT112M4,KF87DT132M4,KF87DT160M4,KF87DT180M4,KF87DT200M4,KF87DRS71M4,KF87DRS80M4,KF87DRS90M4,KF87DRS100M4,KF87DRS112M4,KF87DRS132M4,KF87DRS160M4,KF87DRS180M4,KF87DRS200M4,KF87DRE71M4,KF87DRE80M4,KF87DRE90M4,KF87DRE100M4,KF87DRE112M4,KF87DRE132M4,KF87DRE160M4,KF87DRE180M4,KF87DRE200M4,KF87Y71M4,KF87Y80M4,KF87Y90M4,KF87Y100M4,KF87Y112M4,KF87Y132M4,KF87Y160M4,KF87Y180M4,KF87Y200M4,KF87DV71L4,KF87DV80L4,KF87DV90L4,KF87DV100L4,KF87DV112L4,KF87DV132L4,KF87DV160L4,KF87DV180L4,KF87DV200L4,KF87DT71L4,KF87DT80L4,KF87DT90L4,KF87DT100L4,KF87DT112L4,KF87DT132L4,KF87DT160L4,KF87DT180L4,KF87DT200L4,KF87DRS71L4,KF87DRS80L4,KF87DRS90L4,KF87DRS100L4,KF87DRS112L4,KF87DRS132L4,KF87DRS160L4,KF87DRS180L4,KF87DRS200L4,KF87DRE71L4,KF87DRE80L4,KF87DRE90L4,KF87DRE100L4,KF87DRE112L4,KF87DRE132L4,KF87DRE160L4,KF87DRE180L4,KF87DRE200L4,KF87Y71L4,KF87Y80L4,KF87Y90L4,KF87Y100L4,KF87Y112L4,KF87Y132L4,KF87Y160L4,KF87Y180L4,KF87Y200L4

減速機KF87配各種電機的實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

減速機KF87生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-kfxiliejiansuji-cn.html

推薦類似型號：KA87減速機
