減速機KAF77電機功率：KAF系列減速機

KAF77Y0.37KW,KAF77Y0.55KW,KAF77Y0.75KW,KAF77Y1.1KW,KAF77Y1.5KW,KAF77Y2.2KW,KAF77Y3KW,KAF77Y4KW,KAF77Y5.5KW,KAF77Y7.5KW,KAF77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

錐齒輪減速機KAF77減速比：

減速箱192.18比,減速箱179.37比,減速箱154.02比,減速箱135.28比,減速箱128.52比,減速箱113.56比,減速箱97.05比,減速箱88.97比,減速箱78.07比,減速箱73.99比,減速箱64.75比,減速箱58.34比,減速箱51.18比,減速箱45.16比,減速箱40.04比,減速箱38.39比,減速箱35.2比,減速箱30.89比,減速箱29.27比,減速箱25.62比,減速箱23.08比,減速箱20.25比,減速箱17.87比,減速箱15.84比,減速箱13.52比,減速箱12.36比,減速箱10.84比,減速箱9.56比,減速箱8.48比,減速箱7.24比

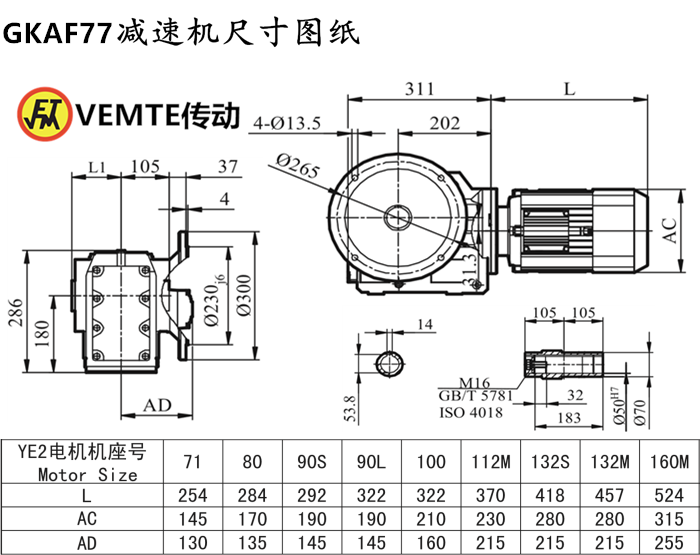

減速機KAF77安裝尺寸：輸出孔+鍵Φ53.8（可定做），高286*寬243（帶輸出法蘭）*長312

轉角減速機KAF77輸出轉數：

7.3rpm/min減速器,7.8rpm/min減速器,9.1rpm/min減速器,10rpm/min減速器,11rpm/min減速器,12rpm/min減速器,14rpm/min減速器,16rpm/min減速器,18rpm/min減速器,19rpm/min減速器,22rpm/min減速器,24rpm/min減速器,27rpm/min減速器,31rpm/min減速器,35rpm/min減速器,36rpm/min減速器,40rpm/min減速器,45rpm/min減速器,48rpm/min減速器,55rpm/min減速器,61rpm/min減速器,69rpm/min減速器,78rpm/min減速器,88rpm/min減速器,104rpm/min減速器,113rpm/min減速器,129rpm/min減速器,146rpm/min減速器,165rpm/min減速器,193rpm/min減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機KAF77輸出扭矩：

減速機1450N.m,減速機1550N.m,減速機1340N.m,減速機1000N.m,減速機990N.m,減速機940N.m,減速機890N.m,減速機820N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

減速機KAF77電機型號：KAF77DV71S4,KAF77DV80S4,KAF77DV90S4,KAF77DV100S4,KAF77DV112S4,KAF77DV132S4,KAF77DV160S4,KAF77DT71S4,KAF77DT80S4,KAF77DT90S4,KAF77DT100S4,KAF77DT112S4,KAF77DT132S4,KAF77DT160S4,KAF77DRS71S4,KAF77DRS80S4,KAF77DRS90S4,KAF77DRS100S4,KAF77DRS112S4,KAF77DRS132S4,KAF77DRS160S4,KAF77DRE71S4,KAF77DRE80S4,KAF77DRE90S4,KAF77DRE100S4,KAF77DRE112S4,KAF77DRE132S4,KAF77DRE160S4,KAF77Y71S4,KAF77Y80S4,KAF77Y90S4,KAF77Y100S4,KAF77Y112S4,KAF77Y132S4,KAF77Y160S4,KAF77DV71M4,KAF77DV80M4,KAF77DV90M4,KAF77DV100M4,KAF77DV112M4,KAF77DV132M4,KAF77DV160M4,KAF77DT71M4,KAF77DT80M4,KAF77DT90M4,KAF77DT100M4,KAF77DT112M4,KAF77DT132M4,KAF77DT160M4,KAF77DRS71M4,KAF77DRS80M4,KAF77DRS90M4,KAF77DRS100M4,KAF77DRS112M4,KAF77DRS132M4,KAF77DRS160M4,KAF77DRE71M4,KAF77DRE80M4,KAF77DRE90M4,KAF77DRE100M4,KAF77DRE112M4,KAF77DRE132M4,KAF77DRE160M4,KAF77Y71M4,KAF77Y80M4,KAF77Y90M4,KAF77Y100M4,KAF77Y112M4,KAF77Y132M4,KAF77Y160M4,KAF77DV71L4,KAF77DV80L4,KAF77DV90L4,KAF77DV100L4,KAF77DV112L4,KAF77DV132L4,KAF77DV160L4,KAF77DT71L4,KAF77DT80L4,KAF77DT90L4,KAF77DT100L4,KAF77DT112L4,KAF77DT132L4,KAF77DT160L4,KAF77DRS71L4,KAF77DRS80L4,KAF77DRS90L4,KAF77DRS100L4,KAF77DRS112L4,KAF77DRS132L4,KAF77DRS160L4,KAF77DRE71L4,KAF77DRE80L4,KAF77DRE90L4,KAF77DRE100L4,KAF77DRE112L4,KAF77DRE132L4,KAF77DRE160L4,KAF77Y71L4,KAF77Y80L4,KAF77Y90L4,KAF77Y100L4,KAF77Y112L4,KAF77Y132L4,KAF77Y160L4

立式減速機KAF77配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

減速機KAF77生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-kafxiliejiansuji-cn.html

推薦類似型號：K77減速機
