F37減速機電機功率：

F37Y0.12KW,F37Y0.18KW,F37Y0.25KW,F37Y0.37KW,F37Y0.55KW,F37Y0.75KW,F37Y1.1KW,F37Y1.5KW,F37Y2.2KW,F37Y3KW電機.（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

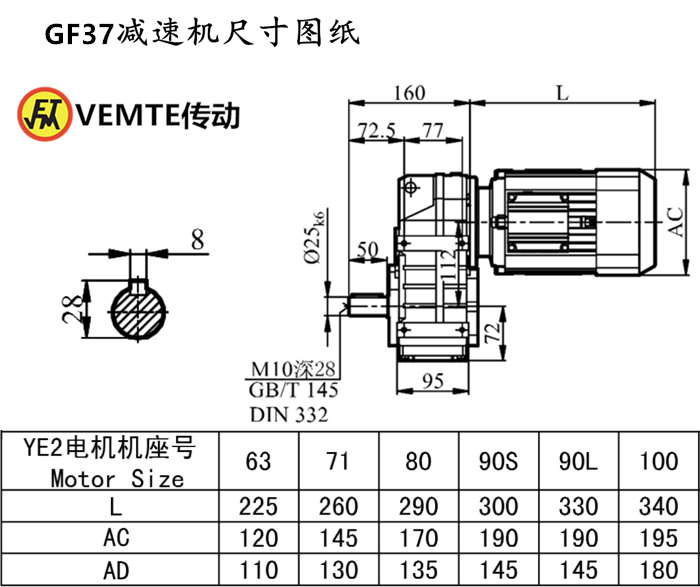

F系列減速器F37減速機安裝尺寸：輸出軸Φ25+鍵3（可定做），高248*寬165*長160（帶輸出軸）

F37齒輪減速器減速比：

1:128減速機,1:117減速機,1:100減速機,1:86減速機,1:80減速機,1:70減速機,1:66減速機,1:58減速機,1:54減速機,1:51減速機,1:47減速機,1:43減速機,1:38減速機,1:35減速機,1:31減速機,1:28減速機,1:23減速機,1:20減速機,1:19減速機,1:17減速機,1:15減速機,1:14減速機,1:12減速機,1:11減速機,1:10減速機,1:9減速機,1:8減速機,1:7減速機,1:6減速機,1:5減速機,1:4減速機,1:3減速機

F37減速機輸出轉數：

11轉減速機,12轉減速機,14轉減速機,16轉減速機,17轉減速機,20轉減速機,21轉減速機,24轉減速機,26轉減速機,27轉減速機,30轉減速機,32轉減速機,37轉減速機,39轉減速機,44轉減速機,50轉減速機,59轉減速機,68轉減速機,73轉減速機,82轉減速機,89轉減速機,98轉減速機,109轉減速機,126轉減速機,134轉減速機,156轉減速機,175轉減速機,188轉減速機,208轉減速機,231轉減速機,269轉減速機,286轉減速機,332轉減速機,371轉平行軸斜齒輪減速機（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

F37減速機輸出扭矩：

200N.m減速機,190N.m減速機,185N.m減速機,175N.m減速機,170N.m減速機,145N.m減速機,140N.m減速機,135N.m減速機,125N.m減速機,120N.m減速機,110N.m減速機,105N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大）齒輪減速馬達

F37減速機電機型號：F37DRE100M4,F37DRE63M4,F37DRE71M4,F37DRE80M4,F37DRE90M4,F37DRS100M4,F37DRS63M4,F37DRS71M4,F37DRS80M4,F37DRS90M4,F37DT100M4,F37DT63M4,F37DT71M4,F37DT80M4,F37DT90M4,F37DV100M4,F37DV63M4,F37DV71M4,F37DV80M4,F37DV90M4,F37Y100M4,F37Y63M4,F37Y71M4,F37Y80M4,F37Y90M4,,F37DRE100L4,F37DRE63L4,F37DRE71L4,F37DRE80L4,F37DRE90L4,F37DRS100L4,F37DRS63L4,F37DRS71L4,F37DRS80L4,F37DRS90L4,F37DT100L4,F37DT63L4,F37DT71L4,F37DT80L4,F37DT90L4,F37DV100L4,F37DV63L4,F37DV71L4,F37DV80L4,F37DV90L4,F37Y100L4,F37Y63L4,F37Y71L4,F37Y80L4,F37Y90L4,,F37DRE100S4,F37DRE63S4,F37DRE71S4,F37DRE80S4,F37DRE90S4,F37DRS100S4,F37DRS63S4,F37DRS71S4,F37DRS80S4,F37DRS90S4,F37DT100S4,F37DT63S4,F37DT71S4,F37DT80S4,F37DT90S4,F37DV100S4,F37DV63S4,F37DV71S4,F37DV80S4,F37DV90S4,F37Y100S4,F37Y63S4,F37Y71S4,F37Y80S4,F37Y90S4。

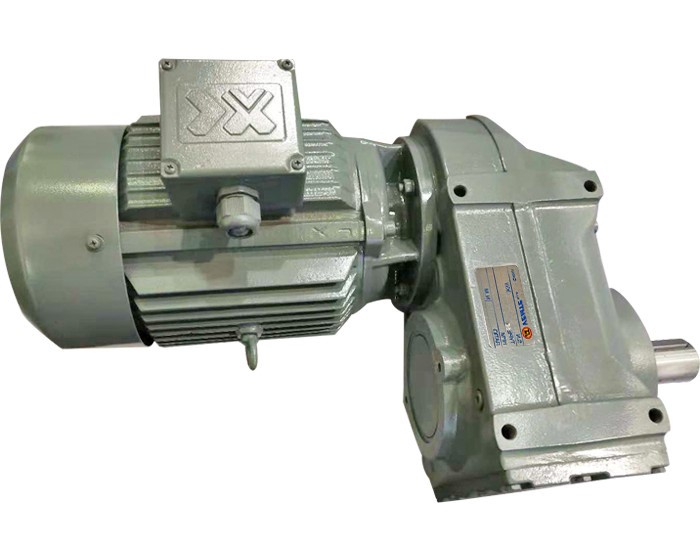

F37減速機配各種電機的實物圖：

F37減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://30d35o.cn/product/list-fxiliejiansuji-cn.html 平行軸減速機

推薦類似型號：減速機FF37
